3-unit 1-bedroom and 2-bedroom apartment

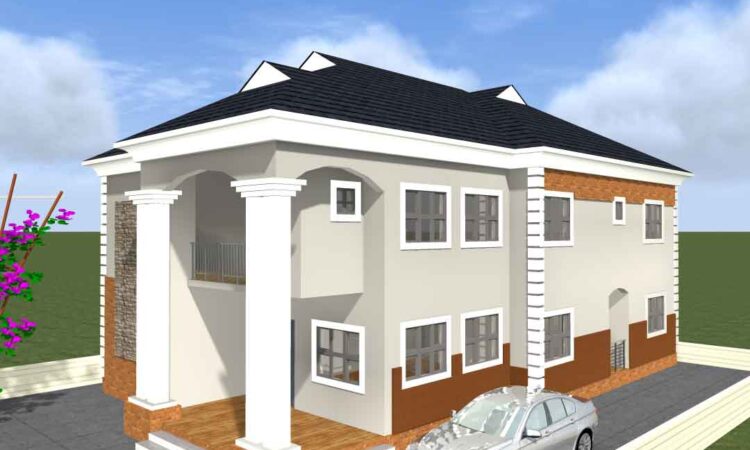

This 3-unit apartment building combines one-bedroom and two-bedroom apartments across two floors, creating a practical and comfortable living environment for multiple households.

Ground Floor Plan

The ground floor features two separate apartment units. Each unit has its own entrance porch that leads into a lounge, which serves as the main living area. Both lounges connect to a kitchen, designed for ease of access and functionality. Each unit includes a bedroom equipped with an attached toilet for privacy and convenience. The design further enhances comfort with verandas that extend the living space outdoors, allowing for relaxation or additional seating.

Shared features on the ground floor include a visitor’s toilet positioned near the main entrance, offering easy access for guests while keeping private areas undisturbed. A central staircase provides access to the upper floor, enabling smooth movement between the floors without disturbing the layout of each apartment unit.

First Floor Plan

The first floor is dedicated to a larger two-bedroom apartment, ideal for a small family. This unit includes a foyer and stair hall that provide entry into the apartment and flow into the lounge area. Adjacent to the lounge is a dining area, conveniently connected to the kitchen for easy meal service. The apartment features two bedrooms, each with its own toilet and closet space, adding privacy and storage. Additionally, the apartment includes a store room, ideal for storing extra household items, and a veranda for outdoor relaxation.

Dimensions and Plot Size

The ground floor plan spans approximately 17.1 meters in length and 10.8 meters in width, covering a footprint of roughly 184.68 square meters. To accommodate the building along with necessary setbacks, landscaping, or driveway space, a 300 square meter plot would be ideal. This would allow for a comfortable fit with outdoor space and access around the structure, creating a balanced and functional residential setup for all three units.
