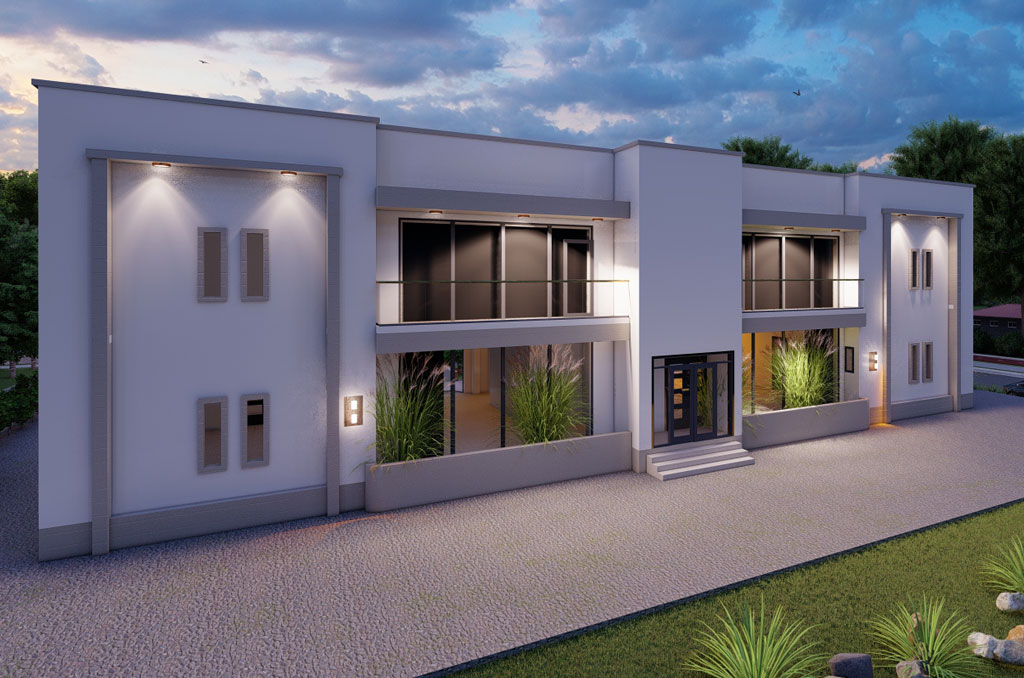

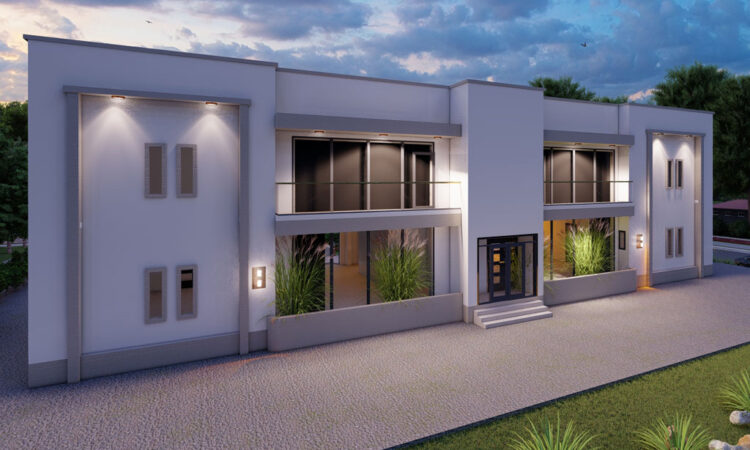

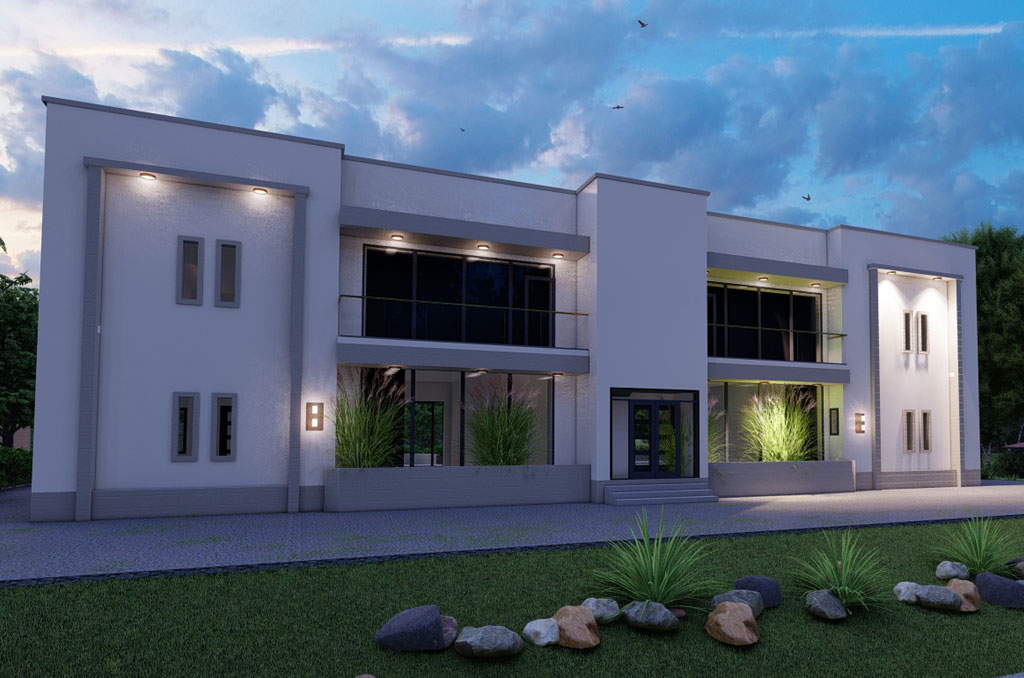

Luxury 4-Bedroom Duplex Floor Plan with Hidden Roof Style

This Luxury 4-Bedroom Duplex Floor Plan with a hidden roof design combines elegance, functionality, and modern architectural appeal. The layout is carefully planned to provide spacious living areas, private family spaces, and seamless indoor-outdoor connectivity. With an overall ground-floor dimension of approximately 27.88 meters in length and 13.43 meters in width , the design offers generous accommodation while maintaining a balanced footprint. The house can comfortably fit on a 50ft × 100ft plot (approximately 15.24m × 30.48m) only if the plan is adjusted or mirrored in scale, as the current width of about 27.88m exceeds the width of a standard 50ft plot. Therefore, this design is more suitable for a wider plot or a double-plot development.

The ground floor welcomes residents through a central Entrance Lobby, which creates a formal transition into the home. Directly behind the lobby is the staircase, strategically positioned at the center of the building for convenient access to the upper floor. The staircase opens into a spacious Main Lounge, which serves as the primary family gathering area and the heart of the ground-floor living space. Large openings and surrounding green areas enhance natural lighting and ventilation, creating a bright and comfortable atmosphere.

To the left side of the main lounge is the Guest Bedroom, designed to provide privacy and comfort for visitors. The bedroom is complemented by a dedicated toilet and closet, allowing guests to enjoy independent accommodation without disturbing other areas of the home. Its location close to the main lounge makes it easily accessible while still maintaining a degree of separation from the family areas.

On the opposite side of the main lounge is the dining section. The Dining Room is conveniently positioned between the lounge and the kitchen, allowing smooth movement during family meals and entertainment. Adjacent to the dining area is the spacious Open Kitchen, designed with a modern concept that promotes interaction between cooking and dining spaces. A Pantry is integrated into the kitchen area for additional storage, while a nearby Utility Room provides space for laundry, cleaning equipment, and household services.

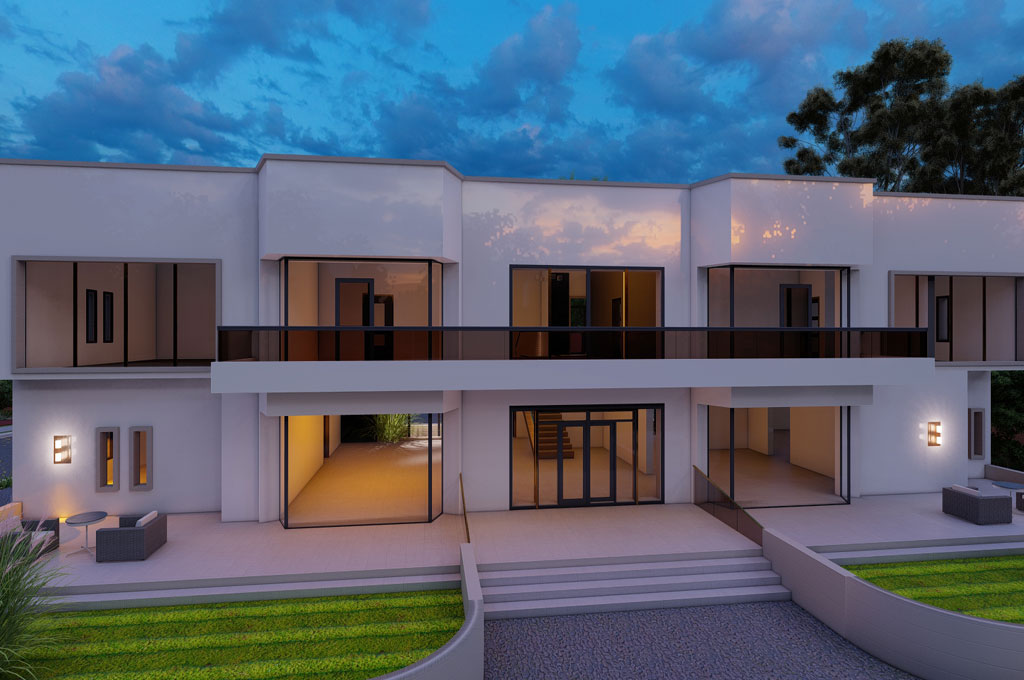

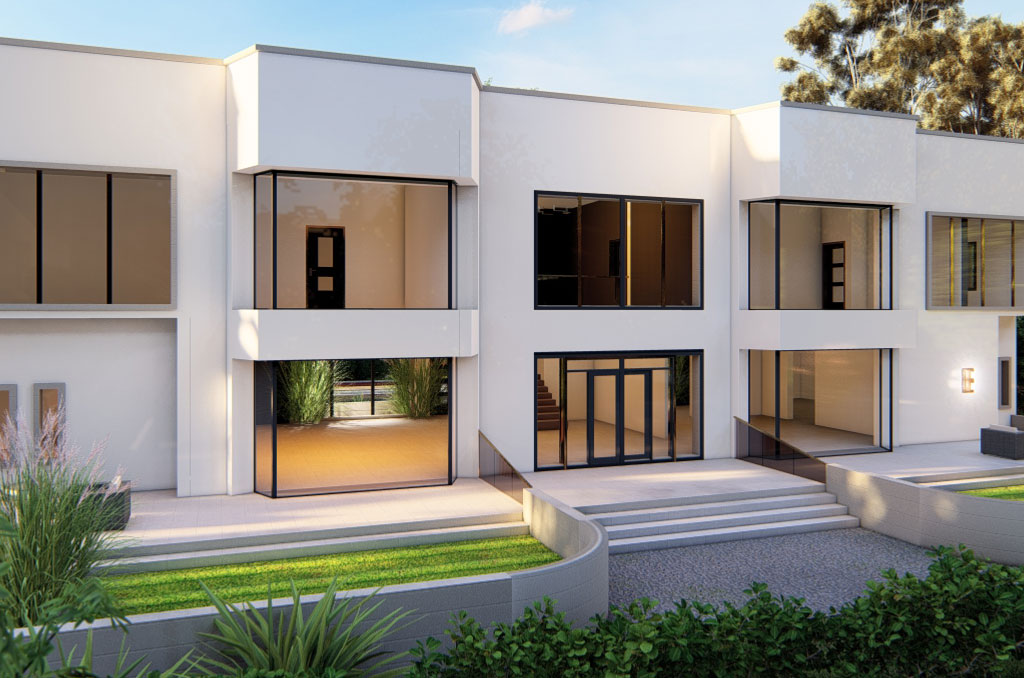

The rear portion of the ground floor features a Rear Exit Terrace, which acts as a transitional outdoor space connecting the interior to the surrounding landscape. On both sides of the terrace are Outdoor Lounges, providing ideal spaces for relaxation, outdoor entertainment, and family gatherings. The surrounding green areas further enhance the aesthetic appeal of the home while contributing to a pleasant outdoor environment.

The first floor is dedicated primarily to private family living. Arriving from the staircase, residents enter an Open Gallery that overlooks the main lounge below through a dramatic Void to Main Lounge. This feature creates a sense of grandeur, improves air circulation, and allows natural light to penetrate deeper into the home.

The left wing of the first floor houses the luxurious Master Bedroom, which enjoys excellent privacy and generous floor space. The master suite includes a private Closet and an en-suite Toilet, creating a comfortable retreat for the homeowners. Adjacent to the master suite is a Private Lounge, offering an exclusive sitting area where the owners can relax away from the common family spaces.

The right wing accommodates two additional family bedrooms. The Madam Bedroom is generously sized and fitted with its own private toilet, providing comfort and convenience. Nearby is the Child Bedroom, also equipped with a dedicated toilet and positioned to ensure privacy while remaining close to other family members. A centrally located Utility Room and lobby space enhance circulation and functionality on this floor.

At the front of the first floor are two Balconies, accessible from the circulation areas, providing outdoor views and additional recreational spaces. The design also incorporates a large Open Roof Terrace, creating a luxurious outdoor extension of the upper floor where residents can enjoy fresh air, relaxation, and social activities.

Overall, this Luxury 4-Bedroom Duplex Floor Plan offers a sophisticated blend of comfort, privacy, and modern living. The spacious lounges, open kitchen concept, elegant double-volume lounge area, multiple outdoor relaxation spaces, and well-planned bedroom arrangement make it an excellent choice for families seeking a premium contemporary home with a distinctive hidden roof architectural style.
